1.46.5mm,19ohm coil,25mm hole with wire and terminal,rocking armature transducer
2.China professional electroacoustic manufacturer with 50 years history.
3.Performance can be adjusted.
4.Variety terminal type.
5.Stable performance.
6.Used in alarm system.
Products
Rocking Armature Transducer BE46.5x15.5-125-LP 1KB.AL-W
Rocking armature Transducer 46.5mm diameter, 24Vp-p rated voltage, 19 ohm coil resistance , 300-3400KHz resonant frequency , with or without wire, RoHS compliant
Product Details
BE46.5x15.5-125-LP 1KB.AL-W
Product Details
Product Paramenters
|
Product Features
|
|
|
*Brand
|
Sunny
|
|
*Part number
|
BE46.5x15.5-125-LP 1KB.AL-W
|
|

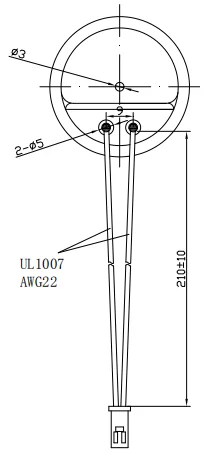

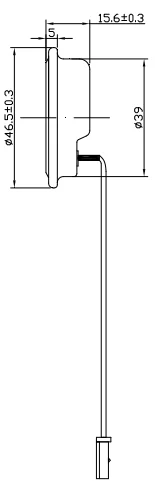

*Dimension
|
46.5*15.6mm
|
|
*Rated Voltage
|
24Vp-p
|
|
*Operating Voltage range
|
1~30Vp-p
|
|
*Coil Resistance
|
19ohm+/-10%
|
|
*Impedance
|
125ohm+/-25%
|
|
*Minimum SPL
|
more than 95dB
|
|
*Sensitivity at 1kHz 1000mV
|
120+/-3dB
|
|
*Frequency Range
|
300~3400Hz
|
|
*Operationg Temperature
|
-40~+85℃
|
|
*Storage Temperature
|
-50~+95℃
|
|
*Housing Material
|
Aluminum
|
|
*Terminal Material
|
Sn plated copper
|
|
*Packing
|
500pcs/carton
|
|
*Carton size
|
39*31*30.5cm
|
