1.39mm,90ohm,110dB siren.
2.China professional electroacoustic manufacturer with 50 years history.
3.Performance can be adjusted.
4.Variety terminal type.
5.Variety wire length and color.
5.High quality.
6.Used in alarm system.
Products
Rocking Armature Transducer BE39x15.5-90-YX 1KB.AL
Rocking armature Transducer 46.5mm diameter, 24Vp-p rated voltage, 25 ohm coil resistance , 300-3400KHz resonant frequency , with or without wire, RoHS compliant
Product Details
BE39x15.5-90-YX 1KB.AL
Product details
Product Paramenters
|
Product Features
|
|
|
*Brand
|
Sunny
|
|
*Part number
|
BE39x15.5-90-YX 1KB.AL
|
|

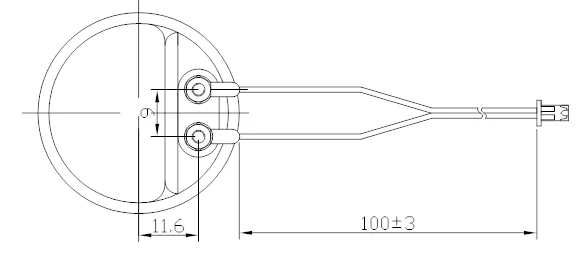

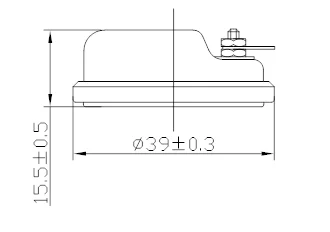

*Dimension
|
39*15.5mm
|
|
*Rated Voltage
|
24Vp-p
|
|
*Operating Voltage range
|
1~30Vp-p
|
|
*Coil Resistance
|
25ohm+/-10%
|
|
*Impedance
|
90ohm+/-25%
|
|
*Minimum SPL
|
more than 90dB
|
|
*Sensitivity at 1kHz 1000mV
|
more than 110dB
|
|
*Frequency Range
|
300~3400Hz
|
|
*Operationg Temperature
|
-40~+85℃
|
|
*Storage Temperature
|
-50~+95℃
|
|
*Housing Material
|
Aluminum
|
|
*Terminal Material
|
Sn plated copper
|
|
*Packing
|
500pcs/carton
|
|
*Carton size
|
39*31*30.5cm
|
Previous: Rocking Armature Transducer BE46.5×15.5-100-LPYX 1KB·Al
Next: Rocking Armature Transducer BE39x15.5-100 LP 1KB.AL
