1.12.5mm terminal siren.
2.Dia.39mm,25ohm coil resistance.
2.China professional electroacoustic manufacturer with 50 years history.
3.Performance can be adjusted.
4.Variety terminal type.
5.High quality.
6.Used in alarm system.
Products
Rocking Armature Transducer BE39x15.5-100 LP 1KB.AL
Rocking armature Transducer 46.5mm diameter, 24Vp-p rated voltage, 25 ohm coil resistance , 300-3400KHz resonant frequency , with or without wire, RoHS compliant
Product Details
BE39x15.5-100 LP 1KB.AL
Product details
Product Paramenters
|
Product Features
|
|
|
*Brand
|
Sunny
|
|
*Part number
|
BE39x15.5-100 LP 1KB.AL
|
|

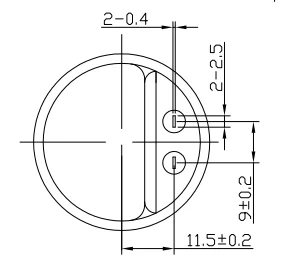

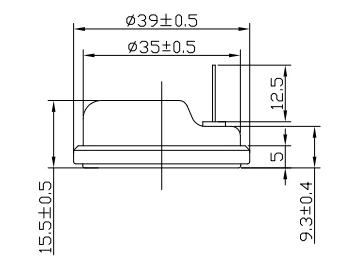

*Dimension
|
39*15.5mm
|
|
*Rated Voltage
|
24Vp-p
|
|
*Operating Voltage range
|
1~30Vp-p
|
|
*Coil Resistance
|
25ohm+/-10%
|
|
*Impedance
|
100ohm+/-25%
|
|
*Minimum SPL
|
90dB
|
|
*Sensitivity at 1kHz 1000mV
|
more than 110dB
|
|
*Frequency Range
|
300~3400Hz
|
|
*Operationg Temperature
|
-30~+70℃
|
|
*Storage Temperature
|
-40~+80℃
|
|
*Housing Material
|
Aluminum
|
|
*Terminal Material
|
Sn plated copper
|
|
*Packing
|
500pcs/carton
|
|
*Carton size
|
39*31*30.5cm
|
